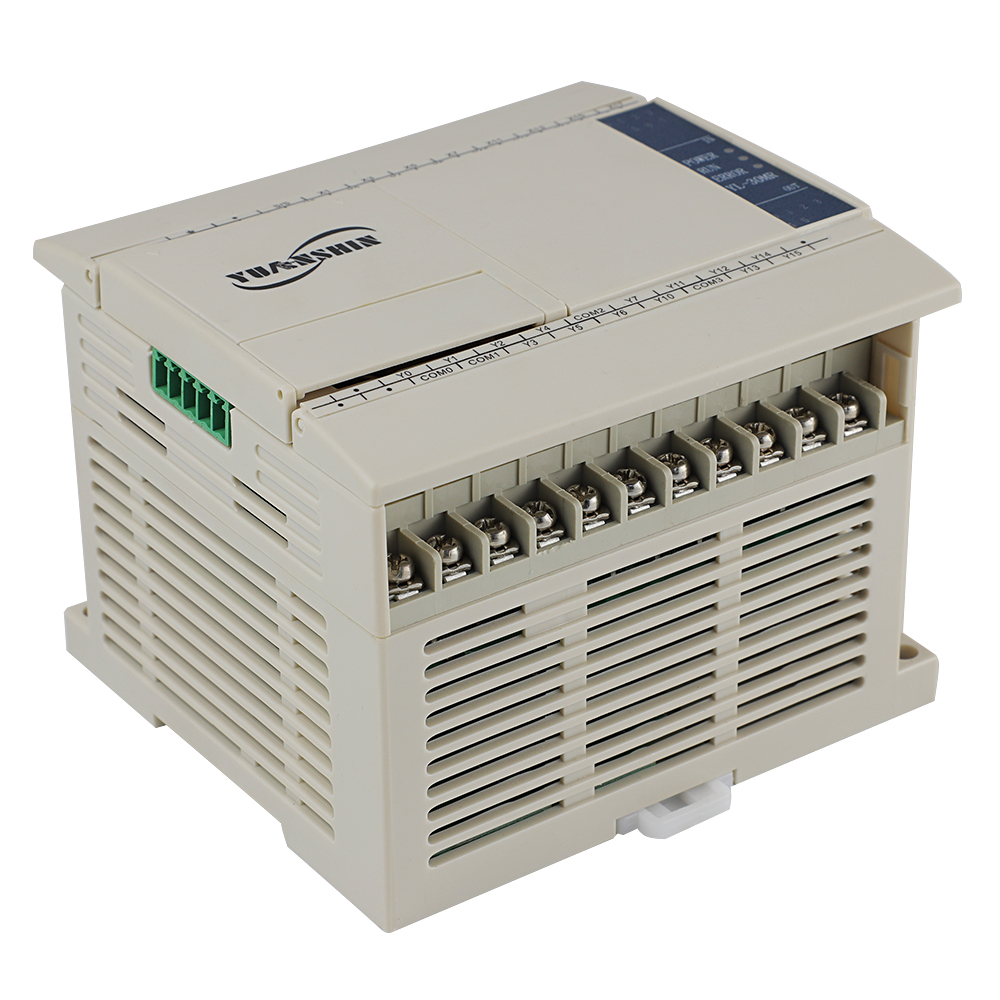

PLC YL10-40MT

YL10 series PLC is a miniature high-performance general-purpose PLC with compact structure and powerful functions. It has data

processing, analog processing, network communication functions, high-speed counting and pulse output positioning control functions,

and also has floating-point arithmetic and write EEPROM instruction ect. features.

item		YL10-40MT
Run mode		Cyclic scan + interrupt mode
Programming mode		Instruction list, ladder diagram, function block
Type of instruction	Basic instruction	27
Type of instruction	Application instruction	136
Execution instruction	Basic instruction	0.1μs
Execution instruction	Application instruction	1μs~10μs
Program capacity		16K
X	External input relay	X0~X377, 256 pts, octal
Y	External input relay	Y0~Y377, 256 pts, octal
M	Auxiliary relay	M0~M3071, 3072 pts; M8000~M8255, 256 pts, special purpose
S	State relay	S0~S999, 1000 pts; S0~S9, used for initialization; S10~S19, 10 pts, origin return; S900~S999, 10 pts, signal alarm
T timer	100mS	T0~T199, 200 pts; T250~T255, 6 pts, cumulative type
	10mS	T200~T245，46 pts
	1mS	T246~T249, 4 pts, cumulative type
C timer	16-bit up	C0~C199，200 pts
	32-bit up/down count	C200~C234，35 pts
	32-bit high speed counting	C235~C255，21 pts
D	Data register	D0~D7999, 8000pts; D8000~D8255, 256 pts, special use
V	Indexed address register	V0~V7，8pts, for indexing Indexed address register
Z	Indexed address register	Z0~Z7，8pts, for indexing Indexed address register
Pulse output		Y0~Y3, 4 independent 200kHz
External input interrupt		X0~X5, 6 way (support upper and lower edges)
High speed count interrupt		6
Timed interrupt		3
Power loss protection function		Full range save, M, S, D, C, T originals can be saved in segments
Storage medium		E2PROM
Digital filtering		X0~X7 provides software digital filtering
Serial communication		3 serial ports, COM0 is RS232, COM1 is RS485 (optional), COM2 is RS232 (optional)
