I. Overview
1. Hydraulic CNC lathes are used in metal processing, auto parts processing and production and other fields.
2. The motor is required to run smoothly at high speed without shaking.
3. The torque of the inverter is required to be large when running at low frequency.
4. The motor is required to start and stop quickly, in 0.8 second, and added with a braking resistor.
II. Advantages of Yuanxin inverter control
1. Inverter control can realize comprehensive protection of the motor and extend the lifecycle of the motor and equipment.
2. Inverter control can realize the requirements of different processes, and achieve the improvement of process quality and benefits.
III. Parameter setting of YX9000 inverter
|
Parameter setting of Yuanxin inverter |
|||
|
Function code |
Name |
Factory default |
Set value |
|
P8.01 |
Motor rated power |
Model setting |
Motor nameplate parameters |
|
P8.02 |
Motor rated speed |
Model setting |
Motor nameplate parameters |
|
P8.03 |
Motor rated current |
Model setting |
Motor nameplate parameters |
|
P8.00 |
Static self-learning |
0 |
2 |
|
P0.00 |
Frequency setting channel selection |
0 |
2 |
|
P0.02 |
Terminal run command selection |
0 |
1 |
|
P0.05 |
Maximum output frequency |
50HZ |
70 |
|
P0.08 |
Upper limit frequency |
50HZ |
70 |
|
P0.10 |
Acceleration time |
Model setting |
0.8 |
|
P0.11 |
Deceleration time |
Model setting |
0.8 |
|
P0.15 |
Torque boost |
0.0% |
10 |
|
P1.02 |
VI maximum setting |
10.00V |
1.9 |
|
P6.01 |
X2 terminal reverse operation |
4 |
2 |

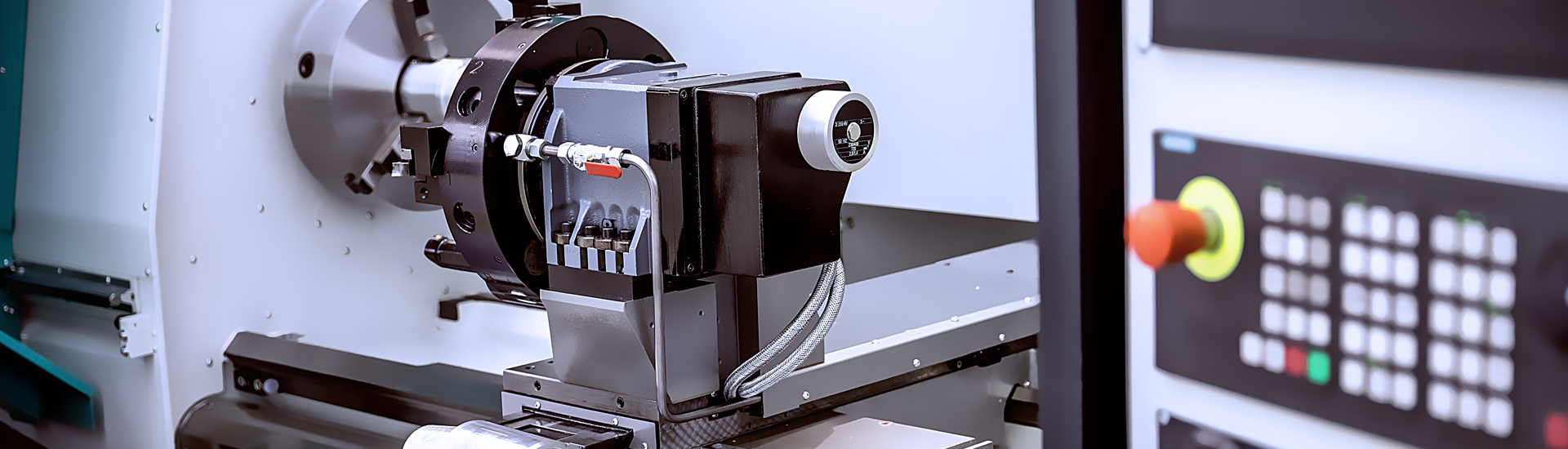

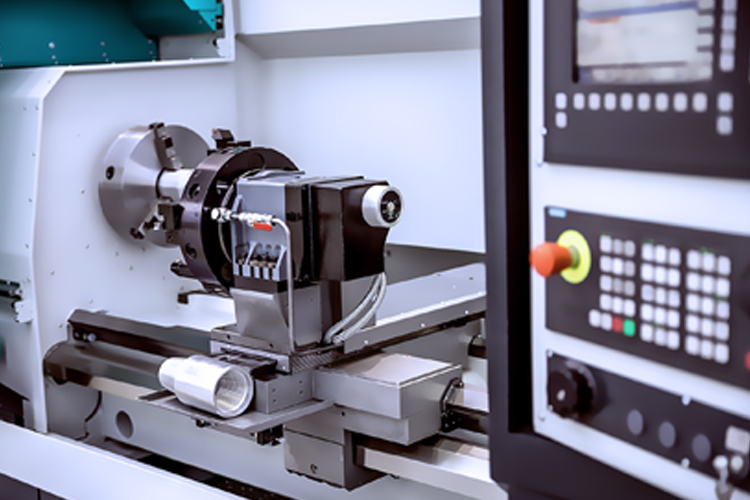

IV. Onsite pictures
